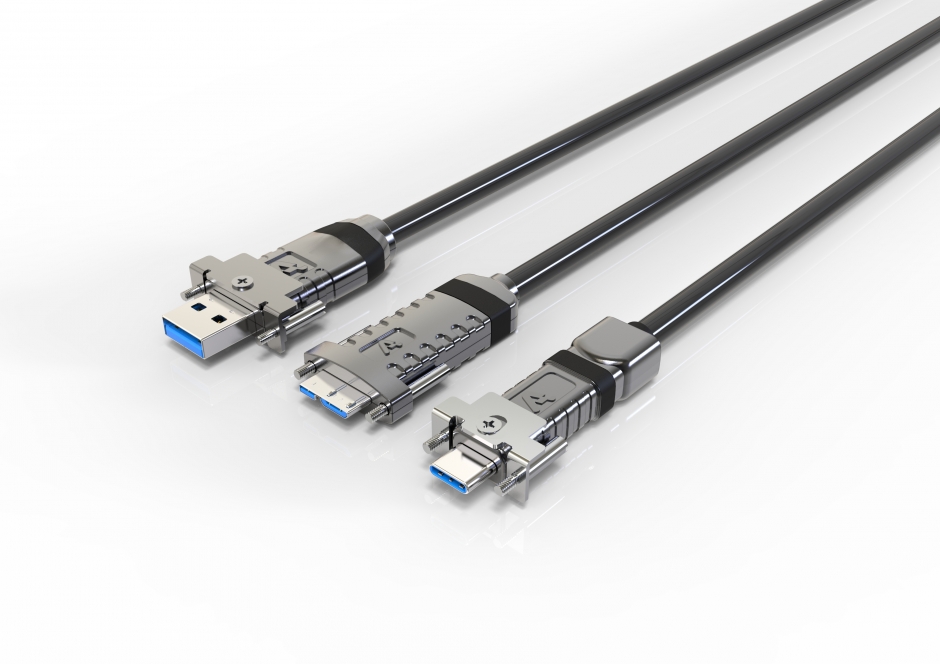

USB 3.2 Gen 2 Active Optical Cable Assemblies
Alysium's new USB 10G AOC cables allow for very long cable lengths while maintaining the high bandwidth and convenience provided by USB devices. Installations no longer need to be a compromise between distance and bandwidth, allowing for simpler design, installation and maintenance.
The sleek diecast design maintains full functionality and compatibility with the USB3Vision standard including locking connectors at both ends for security and dependability.
Key Features
- Supports Gen2 (10G) data transmission
- Optical USB3 transmission supported to max. length of 100m
- Electrical USB2 supported up to 15m
- Assembly powered by USB VBus (no external power necessary)
- 800mA@5V supplied by AOC assembly to 15m (Current C-C version does NOT support USB PD)
- Rugged, Industrial DieCast Terminations
- End to End EMC / EMI protection – FCC Part 15B Certified
- Torsional and S-bend Tested High Flex Cabling
- Screw locking brackets, compatible with all Vision Industry Standards

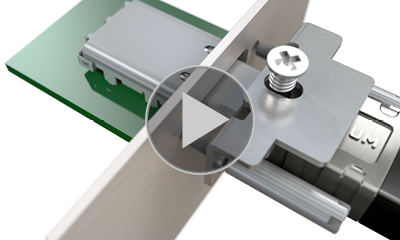

- Type C adjusts to various application receptacle positioning/depths
See it in action:
- Available from stock in lengths of 5m, 10m, 15m, 20m (other lengths possible)

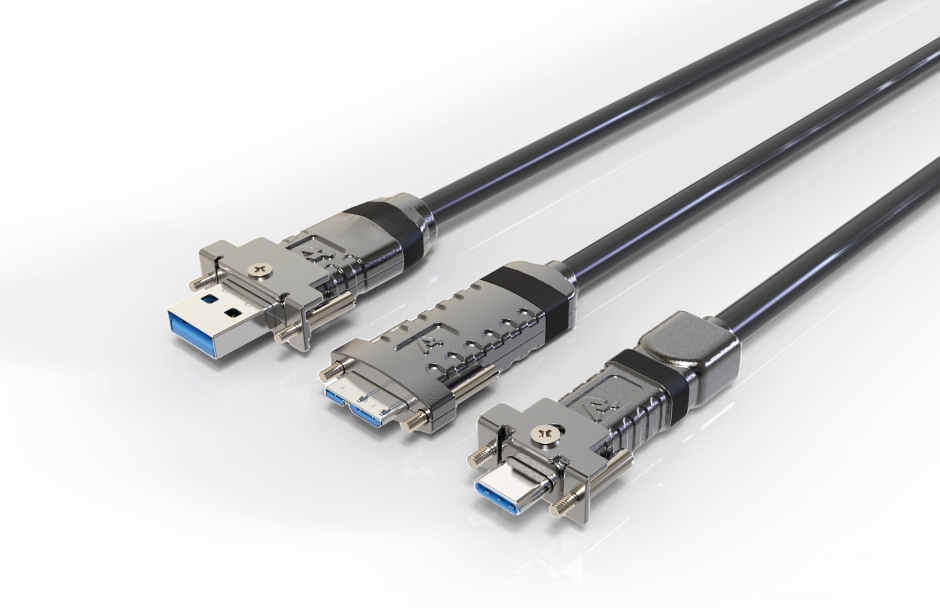

Part Number |
Product Description |
Length (m) |
|---|---|---|
| A70-5939[5] | Type A Male Plug with Horizontal Screw Locking Bracket to µB Male Plug with Machine Vision Thumbscrews | 5 |
| A70-5939[10] | Type A Male Plug with Horizontal Screw Locking Bracket to µB Male Plug with Machine Vision Thumbscrews | 10 |
| A70-5939[15] | Type A Male Plug with Horizontal Screw Locking Bracket to µB Male Plug with Machine Vision Thumbscrews | 15 |
| A70-5940[20] | Type A Male Plug with Horizontal Screw Locking Bracket to µB Male Plug with Machine Vision Thumbscrews | 20 |
| A70-6761[5] | Type A Male Plug to C Male Plug, both with Horizontal Screw Locking Brackets | 5 |
| A70-6761[10] | Type A Male Plug to C Male Plug, both with Horizontal Screw Locking Brackets | 10 |
| A70-6761[15] | Type A Male Plug to C Male Plug, both with Horizontal Screw Locking Brackets | 15 |
| A70-6762[20] | Type A Male Plug to C Male Plug, both with Horizontal Screw Locking Brackets | 20 |
| A70-6020[5] | Type C Male Plug at both ends, with Horizontal Screw Locking Brackets | 5 |
| A70-6020[10] | Type C Male Plug at both ends, with Horizontal Screw Locking Brackets | 10 |
| A70-6020[15] | Type C Male Plug at both ends, with Horizontal Screw Locking Brackets | 15 |
| A70-6021[20] | Type C Male Plug at both ends, with Horizontal Screw Locking Brackets | 20 |
Applications
- Machine Vision Cameras
- Any USB link requiring extended distance
Certificates
Please contact us for more information or send us an email at sales@alysium.com
